Week 02

Semantic Web (HTML5 Semantics)

<div> element in itself has no meaning. It is simply a container

There is often a more specific semantic choice to use
Should only be used when no other semantic element is appropriate
<p> tells us that the content is a paragraph
<h1> tells us that the text is the top level heading of the page

Common Elements

Name	Details
`<header>`	here
`<nav>`	here
`<article>`	here
`<section>`
`<table>`	here
`<details>`
`<figure>`
`<form>`
`<aside>`	here
`<mark>`
`<main>`

`<header>` tag

Usually used for navigation or introductory content.

Can be used at the top of page content to encapsulate navigation, logos
Often used in <article> tags

<header>
  <h1>Most Important Heading</h1>
  <h3>Less Important Heading</h3>
  <p>Additional content</p>
</header>

`<article>` tag

Contains 1 or more heading tags (<h1> ... <h6>)
Commonly used for news content, blog posts, or independent content piece

<article>
  <header>
    <h1>Most Important Heading</h1>
    <h3>Less Important Heading</h3>
    <p>Additional content</p>
  </header>
</article>

<article>
  <h1>This is a Heading</h1>
  <p>This is a paragraph in the article</p>
</article>
<p>This is a separate paragraph</p>

`<nav>` tag

Usually for location of menu links

<nav>
  <a href ="/html/">html</a> |
  <a href ="/css/">css</a> |
  <a href ="/js/">JavaScript</a>|
</nav>

caution

This is for key navigation elements in the site and NOT for every link in a site.

`<aside>` tag

For content that is indirectly related to your main content

Commonly seen in sidebars or call out boxes

CSS (Cascading Style Sheet)

CSS defines the colour, size and position of the content.

CSS Rule

p{color:purple;}

info

p{color:purple;} is called a CSS Rule

declaration → {color:purple}
selector → p (all paragraphs in webpage will be affected)
property → color
- value → purple (text will be purple)

Styling in HTML

Let's explore how we can include styles in HTML

Inline Style

Applies directly to individual elements with a HTML element's style attribute
Targets only that element

<p style="text-align: left;">
  Just a sentence
</p>

Style Element `<style>`

Appears as a child of the <head> element in the file
Styles all occurences of a target that are on the page

<head>
    <style>
        *, body(
            font-family: Arial, Helvetica, sans-serif;
        )
        p{color: green;}
    </style>
</head>

Link External Style Sheet `<link>`

This is the most commonly used/preferred method

Set of style rules defined in an external file
Appears as child of the <head> element of the file
Styles all occurences of a target that are on a page
Central external point for styling many pages

<head>
    <link rel="stylesheet" href="basic.css" type="text/css">
</head>

Import `@import`

Set of style rules defined in an external file
Should appear as a first rule in an external stylesheet
Used to chain multiple external files together

Colors

There are different ways to apply different colours to our website.

color property changes text colour.
background-color property changes background colour (default is transparent).

Hexadecimal

A string of 6 hexademicals (from 0-F)
- Covers 16.7 million colours
- #fffff = white
- #00000 = black

Example

h1{
    color: #000000;
}

h2{
    color: #4b0082;
}

h3{
    color: #ff1493;
}

RGB

3 channels: Red, Green and Blue

Example

h1{
    color: rgb(0,0,0);
}

h2{
    color: rgb(75,0,130);
}

h3{
    color: rgb(255,20,147);
}

RGBA

RGB but with an alpha(transparency) channel

Example

h1{
    color: rgba(11, 99, 150, 1);
}

h2{
    color: rgba(11, 99, 150, 0.6);
}

h3{
    color: rgba(11, 99, 150, 0,2);
}

ID Attribute `#myElement`

Selects any element with the ID myElement
- E.g. <p id="myElement"></p>
Unique only to that element
Only one ID per element

<!DOCTYPE html>
<html>
<head>
  <title>Document</title>
  <style>
  #myElement{color:#23FBFF;}
  </style>
</head>
<body>
  <p id="myElement">
    A paragraph with <em>emphasis</em> and styled
  </p>

  <p>
    A normal paragraph
  </p>
</body>
</html>

Result

A paragraph with emphasis and styled

A normal paragraph

Class Attribute `.myClass`

Selects any element with the class name myClass
- E.g. <p class=myClass></p>
Used to style an element grouping
Targets one or more element's class attribute
Elments

<!DOCTYPE html>
<html>
<head>
  <title>Document</title>
  <style>
  .myClass{font-family:Arial, Helvetica, sans-serif;
  color:#6E3B04;
  }
  </style>
</head>
<body>
  <h1 class="myClass">A styled header<h1>
  <p class="myClass">
    A paragraph with <em>emphasis</em> and styled
  </p>

  <p>
    A normal paragraph
  </p>
</body>
</html>

Result

A paragraph with emphasis and styled

A normal paragraph

Pseudo Classes

A set of pseudo classes can style anchor <a> elements depending on their state.

Pseudo Class	Element State
:link	unvisited link
:visited	visited link
:hover	moused over link
:active	current link
:focus	focused link

Making IDs and Class Names

Rules to follow

Describe the content, not the presentation. ("warning", not "redbox")
Use all lowercase. Add hyphens for readability. ("header-info", not "headerInfo")
Use hyphens to show that a class or ID is part of something else. ("footer", "footer-copyright", "footer-logo")
Preferably no camel case (check what is camel case before publishing)

Typography

Possible font properties

font: All properties
font-family
font-size: px, em, %, xx-small to xx-large
font-style: normal, italic, oblique
font-variant: normal, small-caps
font-weight: bold, bolder, lighter, normal, 100-900
line-height: line height between two lines of text
text-align: alignment of the text within the box

Remember

Use quotes for fonts with a space in their names! E.g. "Fira Sans"

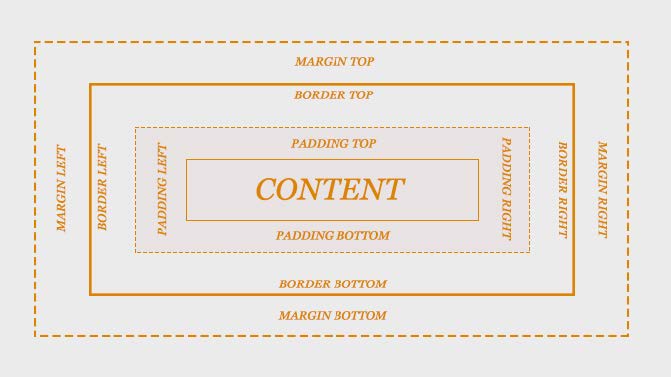

Box Model

Margin: Pixel boundary outside the box
Padding: Pixel boundary inside the box

CSS3 Web Gradients

CSS3 displays smooth transitions between two or more specified colours, with reduced download time and bandwidth usage.
Elements with gradients look better when zoomed as the gradients are generated by the browser itself.

Linear gradients: down, up, left, right, diagonal
Radial gradients: defined by the center

Sites to get gradient colours:
